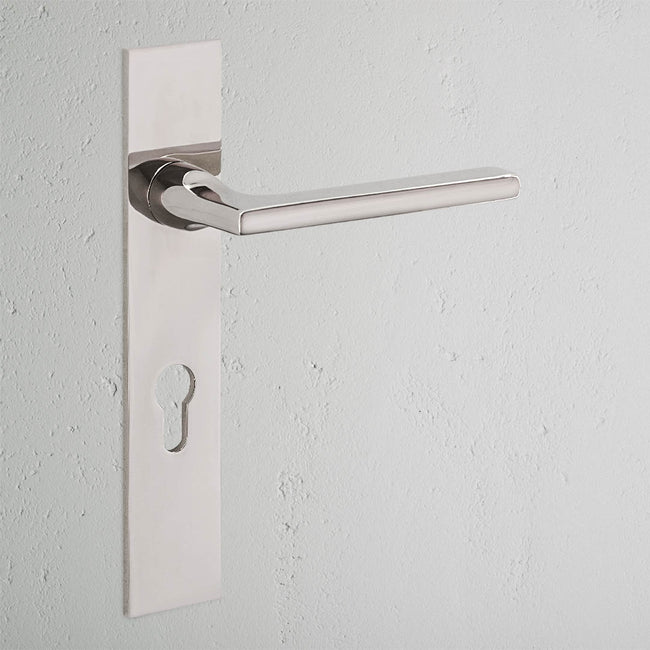

Clayton Long Plate Sprung Door Handle & Euro Lock

Polished Nickel  13368

(No reviews yet)

£114.00

In Stock

Clayton is probably our most modern door handle thanks to its sleek, flat-surfaced lever (the front-facing surface still has a subtle curve to it for a really pleasing overall feel).   

This version includes a low-profile, long backplate that’s designed for use with a Euro cylinder lock.

The handle comes with a sprung mechanism inside which is strong enough to take the weight of the solid brass and stop it sagging over time. It means you can pair it with any latch. 

There’s also no danger of it coming away in your hand – the spindle is threaded onto the handle which holds it in place. 

Polished Nickel is our answer to chrome. It’s a bit warmer, so you can use it with warm or cool colour palettes. And it’s our only finish that doesn’t age – all you need is a lint-free cloth to bring back its shine.  

  • Solid brass 4mm backplate with screwless ‘front’ side  
  • Super smooth turn thanks to self-lubricating, high-tolerance bushings 
  • Sold in a pair 

Technical Specifications +-

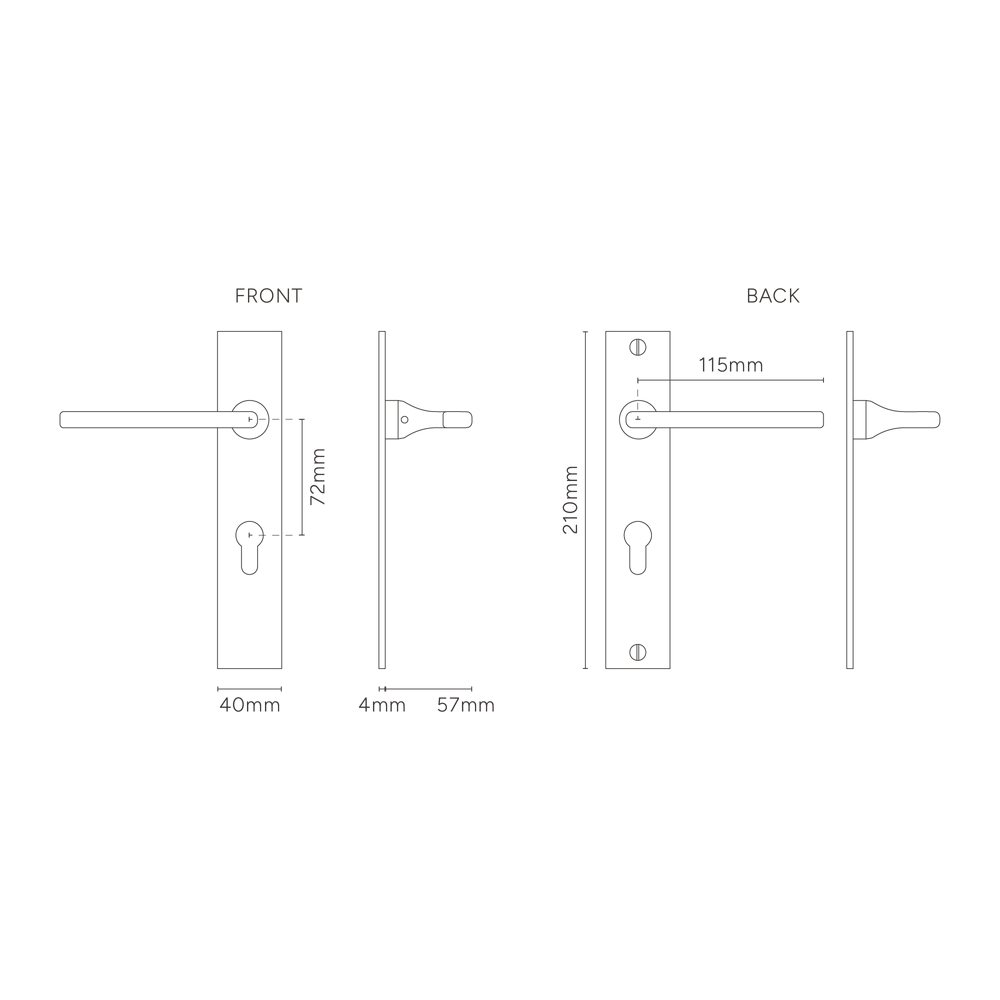

  • Dimensions: handle W110mm x H60mm; plate H210mm x W40mm x D4mm 
  • Designed for use with Euro mortice locks with a 72mm C-C spacing (cylinder not included) 
  • Supplied with Corston sprung mechanism
  • Suitable for interior doors only 
  • Minimum door thickness 35mm; maximum door thickness 45mm (with supplied fixings)  
  • Accepts 8mm Corston spindle (supplied) 

Installation +-

Because our backplates are just 4mm in depth, we’ve designed the handle’s spring mechanism to recess into your door. You’ll need our 12mm template profiler router bit and flat plate routing jig to get the square pocket for the mechanism just right.

Full instructions on how to fit our door handles are online here.

Delivery Information +-

Orders will usually be dispatched within 3-5 working days.

UK Delivery costs
• Orders up to £49.99: £7
• Orders from £50 - £249.99: £12
• Orders from £250 - £1,499.99: £15
Orders over £1,500 will be calculated at checkout. For International delivery costs please visit our delivery page here.
£114.00

Technical Specifications +-

Installation +-

Delivery Information +-

  • Dimensions: handle W110mm x H60mm; plate H210mm x W40mm x D4mm 
  • Designed for use with Euro mortice locks with a 72mm C-C spacing (cylinder not included) 
  • Supplied with Corston sprung mechanism
  • Suitable for interior doors only 
  • Minimum door thickness 35mm; maximum door thickness 45mm (with supplied fixings)  
  • Accepts 8mm Corston spindle (supplied) 

Because our backplates are just 4mm in depth, we’ve designed the handle’s spring mechanism to recess into your door. You’ll need our 12mm template profiler router bit and flat plate routing jig to get the square pocket for the mechanism just right.

Full instructions on how to fit our door handles are online here.
