3G Mixed Switch 2T1D

Polished Nickel 18143

(No reviews yet)

£93.60

In Stock

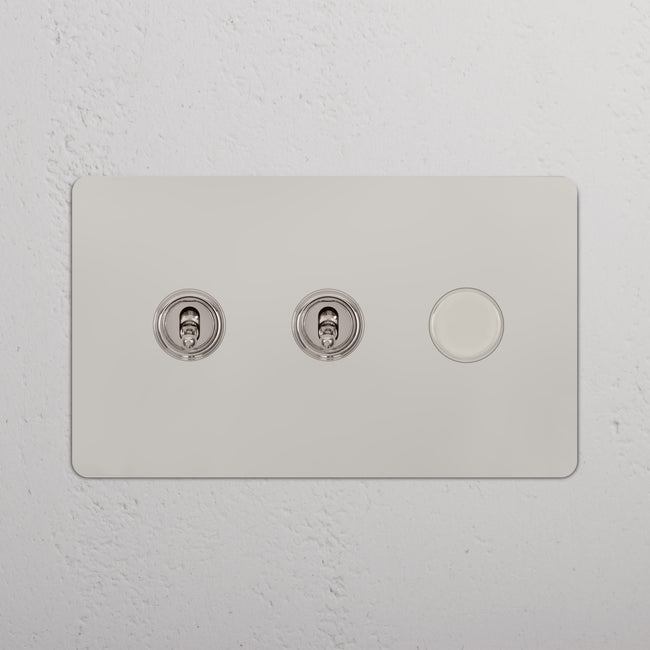

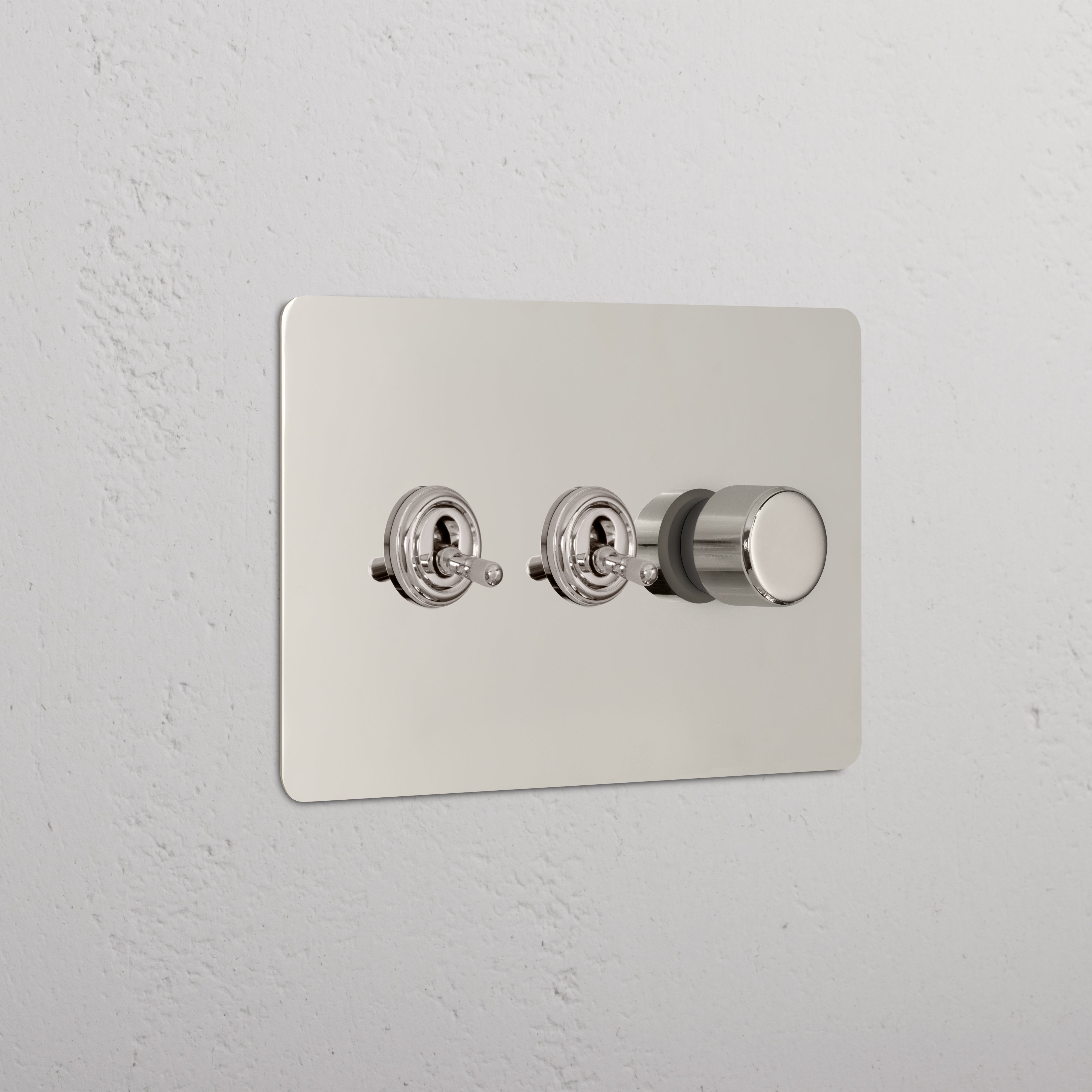

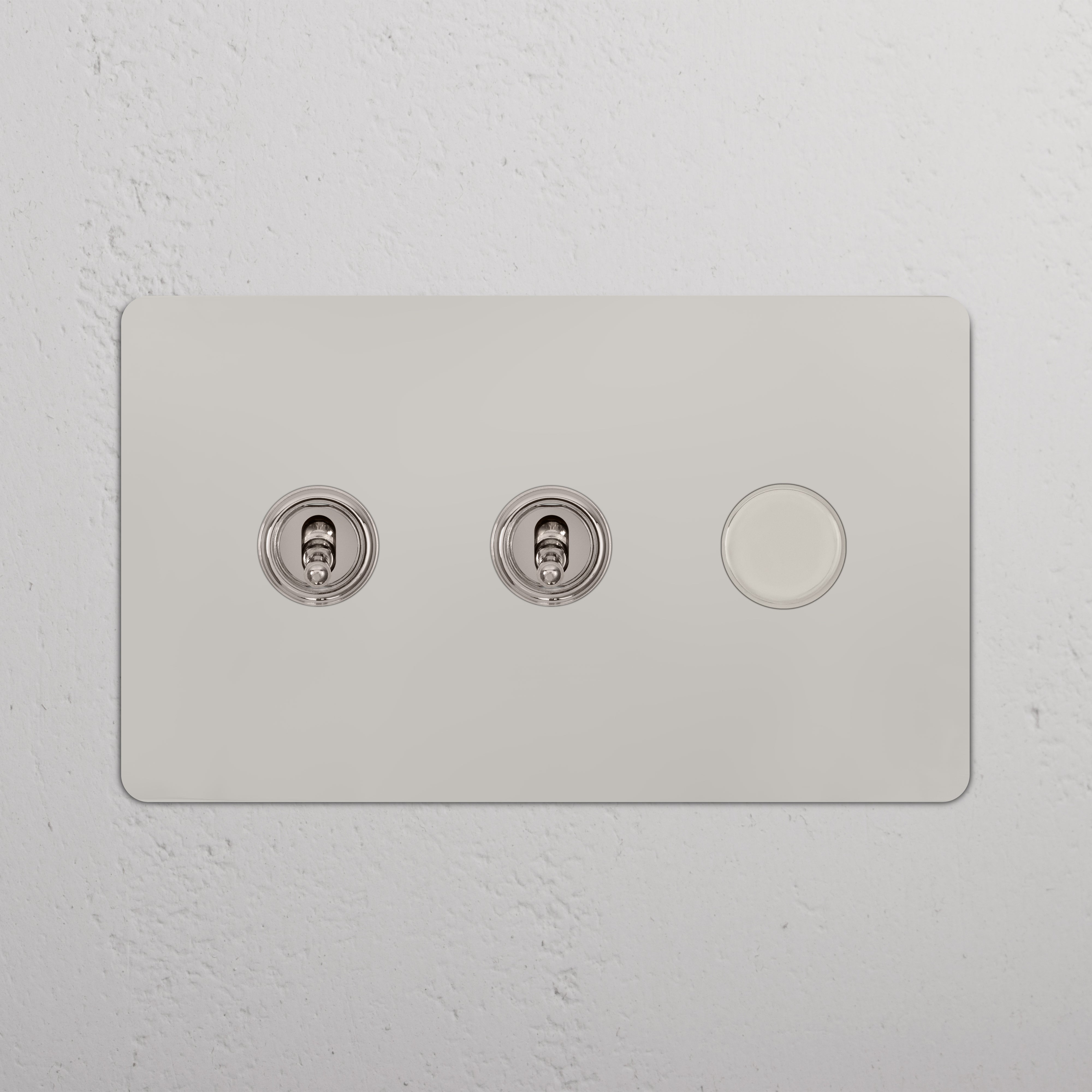

Use two standard toggle switches and a dimmer knob on one plate with this mixed switch design.
Powered by the latest dimmer technology, the smooth rotary style control lets you set the mood from morning to night.
The classic toggles flick from top to bottom with a satisfying click.
Finished in our Polished Nickel plating, it'll keep its shine for years to come.

  • Anti-flickering/buzzing
  • Suitable for trailing or leading edge modes
  • Made from solid brass
  • Create your own switch combinations here
  • Match with spotlights, door handles and more from the Polished Nickel collection

Technical Specifications +-

  • Dimensions; H86mm x W146mm x D45mm. Dimmer height is 20mm
  • Switches rated to 20A
  • The switch plate sits 1.5mm from the wall
  • Secured with a metal ring without visible tool marks
  • Metal die-cast chassis
  • All dimmers have built in thermal and short circuit protection
  • Minimum brightness can be set, which avoids any bulb flicker
  • Trailing or leading edge dimming control .Trailing edge is the default setting and is recommended to prolong LED life
  • Soft start operation which protects the bulbs
  • Two dimmers cannot be combined to control the same light. Use toggle switches in combination with a dimmer switch
  • Complies with BSEN60669-1
  • 230-250V~50Hz
  • 5-150W LED's 10-350W incandescent bulbs

Installation +-

We recommend using a 35-47mm back box with this switch.

Delivery Information +-

Orders will usually be dispatched within 1-3 working days. Large or antique brass orders require additional time, typically 3 working days.

UK Delivery costs
• UK Delivery cost is £6 for orders £1-£99
• UK Delivery cost is £10 for orders £100-499
• UK Delivery cost is £20 for orders £500+
For EU and International delivery costs please visit our delivery page here.
